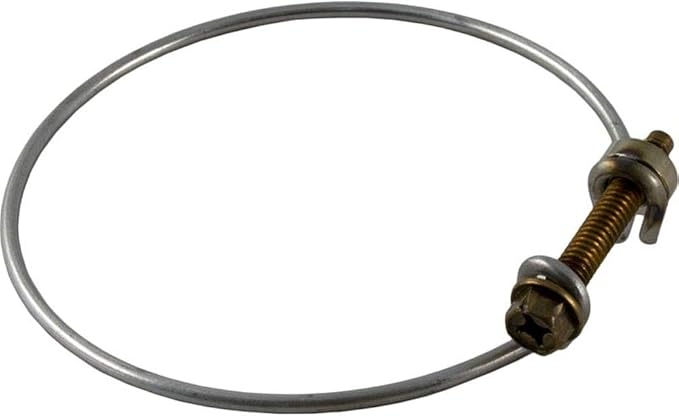

The Pentair 79210400 is a Uni‑Tension Wire Clamp Assembly—a replacement part designed to securely fasten the lens and gasket of Pentair pool and spa lights, ensuring a watertight seal.
Key Features & Compatibility
-
Constructed from stainless steel and includes a welded nut.
-
Compatible with multiple Pentair lighting models:
-
IntelliBrite 5G (both white and color LED spa lights)
-
SAL Spectrum AquaLight
-
SpaBrite and AquaLight light assemblies
-
Functionality
-
It serves as a secure clamping mechanism: the circular wire clamps down on the lens and gasket with tension, and the screw attaches into the welded nut—holding everything tightly in place.
-
During reassembly, you align the lens with its gasket in the face ring, fit the clamp into designated clips, and tighten until the clamp ends are within ¼ inch or less.
Quick Summary
| Feature | Details |
|---|---|
| Part Name | Uni‑Tension Wire Clamp Assembly (Pentair 79210400) |
| Material | Stainless steel with welded nut |
| Function | Secures lens/gasket on spa/pool lights for watertight seal |
| Compatible Lights | IntelliBrite 5G (white/color), SAL Spectrum AquaLight, SpaBrite, AquaLight |
